| 产品特性：高韧性 | 是否进口：否 | 产地：日本 |
| 厂家(产地)：日本油墨 | 牌号：Z-230 | 销售方式：品牌经销 |
| 类型：标准料 | 品名：高韧性PPS | 加工级别：注塑级 |
| 特性级别：阻燃级、 增韧级、 增强级、 耐高温、 高抗冲 | 用途级别：汽车部件、 电子电器部件、 家电部件 | 品牌：日本DIC迪爱生 |
| 产品规格：高韧性 |

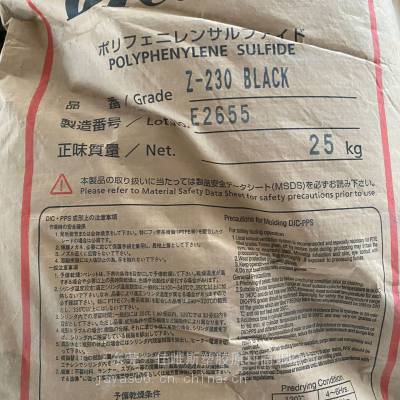

日本DIC迪爱生Z-230高韧性PPS聚苯硫醚耐热水，30%玻纤增强，高韧性，具有优 异的耐冲击性能、耐冷热冲击性和耐热水性。原厂原包，提供原厂质量检验证书(COA)，官方物性表等资料。
PPS Z-230物性表：
| Physical | Nominal Value | Unit | Test Method |
Density / Specific Gravity | 1.53 | g/cm? | ASTM D792 |
Molding Shrinkage - Flow | 0.30 | % | ASTM D955 |
Molding Shrinkage - Across Flow | 1.2 | % | ASTM D955 |
Water Absorption (24 hr, 23°C) | 0.020 | % | ASTM D570 |
| Mechanical | Nominal Value | Unit | Test Method |
Tensile Modulus | 9300 | MPa | ASTM D638 |
Tensile Strength | 155 | MPa | ASTM D638 |
Tensile Elongation (Break) | 2.4 | % | ASTM D638 |
Flexural Modulus | 8500 | MPa | ASTM D790 |
Flexural Strength | 220 | MPa | ASTM D790 |
Flexural Elongation (Break) | 3.2 | % | ASTM D790 |
Compressive Strength | 150 | MPa | ASTM D695 |
Poisson&＃39;s Ratio | 0.36 | ||
| Impact | Nominal Value | Unit | Test Method |
Notched Izod Impact | 140 | J/m | ASTM D256 |
Unnotched Izod Impact | 750 | J/m | ASTM D4812 |
| Hardness | Nominal Value | Unit | Test Method |
Rockwell Hardness (R-Scale) | 118 | ASTM D785 | |
| Thermal | Nominal Value | Unit | Test Method |
Deflection Temperature Under Load (1.8 MPa, Unannealed) | 255 | °C | ASTM D648 |
CLTE - Flow (-30 to 100°C) | 2.2E-5 | cm/cm/°C | ASTM D696 |
CLTE - Transverse (-30 to 100°C) | 2.2E-5 | cm/cm/°C | ASTM D696 |
| Electrical | Nominal Value | Unit | Test Method |
Volume Resistivity | 1.0E+16 | ohms·cm | ASTM D257 |
Dielectric Strength (1.60 mm) | 16 | kV/mm | ASTM D149 |
Dielectric Constant (1 MHz) | 5.00 | ASTM D150 | |
Dissipation Factor (1 MHz) | 5.0E-3 | ASTM D150 | |
| Flammability | Nominal Value | Unit | Test Method |
Flame Rating (1.6 mm) | V-0 | UL 94 |
