| 产品特性：阻燃增强 | 是否进口：否 | 产地：荷兰 |
| 厂家(产地)：荷兰 | 牌号：G4024T | 销售方式：品牌经销 |
| 类型：标准料 | 品名：PPS塑胶原料 | 加工级别：注塑级 |
| 特性级别：阻燃级、 增强级 | 用途级别：电子电器部件、 家电部件 | 品牌：荷兰 |
| 产品规格：阻燃增强级 |

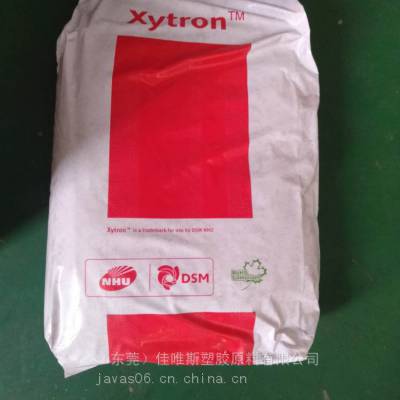

荷兰Xytron G4024T玻纤增强PPS塑胶原料，40%玻纤增强, 优异的脱模性, 阻燃。原厂原包，提供原厂质量检验证书(COA)，官方物性表等资料。
Xytron?是荷兰DISIMAN工程塑料中的高性能塑料，基料为PPS（聚苯硫醚）。
Xytron?拥有***的耐化学性，尺寸稳定性，天生的阻燃性和高刚度。
Xytron? ***性能使得它在多种不同的应用中表现突出。
PPS G4024T物性表：
| Physical | Nominal Value | Unit | Test Method |
Density | 1.65 | g/cm? | *** 1183 |
Spiral Flow 2 | 6.80 | cm | |
Molding Shrinkage | *** 294-4 | ||
Across Flow | 0.50 | % | |
Flow | 0.20 | % | |
Water Absorption (24 hr, 23°C) | 0.040 | % | *** 62 |
Water Absorption (Equilibrium, 23°C, 50% RH) | 0.080 | % | *** 62 |
| Mechanical | Nominal Value | Unit | Test Method |
Tensile Modulus | *** 527-1 | ||
-- | 15000 | MPa | |
-40°C | 17000 | MPa | |
120°C | 6700 | MPa | |
160°C | 5300 | MPa | |
200°C | 4100 | MPa | |
Tensile Stress | *** 527-2 | ||
Break | 205 | MPa | |
Break, -40°C | 235 | MPa | |
Break, 120°C | 85.0 | MPa | |
Break, 160°C | 65.0 | MPa | |
Break, 200°C | 50.0 | MPa | |
Tensile Strain | *** 527-2 | ||
Break | 2.1 | % | |
Break, -40°C | 2.0 | % | |
Break, 120°C | 4.0 | % | |
Break, 160°C | 3.8 | % | |
Break, 200°C | 3.9 | % | |
Flexural Modulus | *** 178 | ||
-- | 14000 | MPa | |
120°C | 8200 | MPa | |
160°C | 5000 | MPa | |
200°C | 4300 | MPa | |
Flexural Stress | *** 178 | ||
-- | 280 | MPa | |
120°C | 140 | MPa | |
160°C | 95.0 | MPa | |
200°C | 70.0 | MPa | |
Weldline Strain (4.00 mm) | 0.60 | % | *** 527-2 |
Weldline Strength (4.00 mm) | 72.0 | MPa | *** 527-2 |
| Impact | Nominal Value | Unit | Test Method |
Charpy Notched Impact Strength | *** 179/1eA | ||
-30°C | 11 | kJ/m? | |
23°C | 11 | kJ/m? | |
Charpy Unnotched Impact Strength | *** 179/1eU | ||
-30°C | 62 | kJ/m? | |
23°C | 60 | kJ/m? | |
Notched Izod Impact Strength | *** 180/1A | ||
-40°C | 12 | kJ/m? | |
23°C | 12 | kJ/m? | |
Unnotched Izod Impact Strength (23°C) | 55 | kJ/m? | *** 180/1U |
| Hardness | Nominal Value | Unit | Test Method |
Rockwell Hardness | *** 2039-2 | ||
M-Scale | 100 | ||
R-Scale | 120 | ||
| Thermal | Nominal Value | Unit | Test Method |
Deflection Temperature Under Load (0.45 MPa, Unannealed) | 280 | °C | *** 75-2/B |
Deflection Temperature Under Load (1.8 MPa, Unannealed) | 265 | °C | *** 75-2/A |
Deflection Temperature Under Load (8.0 MPa, Unannealed) | 185 | °C | *** 75-2/C |
Glass Transition Temperature 3 | 90.0 | °C | *** 11357-2 |
Melting Temperature 3 | 280 | °C | *** 11357-3 |
CLTE - Flow | *** 11359-2 | ||
-- | 1.5E-5 | cm/cm/°C | |
-- 4 | 1.5E-5 | cm/cm/°C | |
CLTE - Transverse | *** 11359-2 | ||
-- | 4.0E-5 | cm/cm/°C | |
-- 4 | 1.1E-4 | cm/cm/°C | |
Thermal Conductivity | ASTM E1461 | ||
-- 5 | 0.40 | W/m/K | |
-- 6 | 0.50 | W/m/K | |
RTI Elec | UL 746B | ||
0.40 mm | 130 | °C | |
0.8 mm | 130 | °C | |
RTI Imp | UL 746B | ||
0.40 mm | 130 | °C | |
0.8 mm | 130 | °C | |
RTI Str | UL 746B | ||
0.40 mm | 130 | °C | |
0.8 mm | 130 | °C | |
| Electrical | Nominal Value | Unit | Test Method |
Surface Resistivity | > 1.0E+15 | ohms | IEC 62631-3-2 |
Volume Resistivity | > 1.0E+13 | ohms·m | IEC 62631-3-1 |
Electric Strength | 31 | kV/mm | IEC 60243-1 |
Relative Permittivity | IEC 61189-2-721 | ||
1.00 GHz | 4.00 | ||
5.00 GHz | 4.00 | ||
Dissipation Factor | IEC 61189-2-721 | ||
1.00 GHz | 3.5E-3 | ||
5.00 GHz | 5.5E-3 | ||
| Flammability | Nominal Value | Unit | Test Method |
Flame Rating | UL 94 | ||
1.5 mm | V-0 | ||
3.0 mm | V-0 | ||
Flammability Classification | IEC 60695-11-10, -20 | ||
1.5 mm | V-0 | ||
3.0 mm | V-0 | ||
Glow Wire Flammability Index (0.8 mm) | 960 | °C | IEC 60695-2-12 |
Glow Wire Ignition Temperature (0.8 mm) | 850 | °C | IEC 60695-2-13 |
